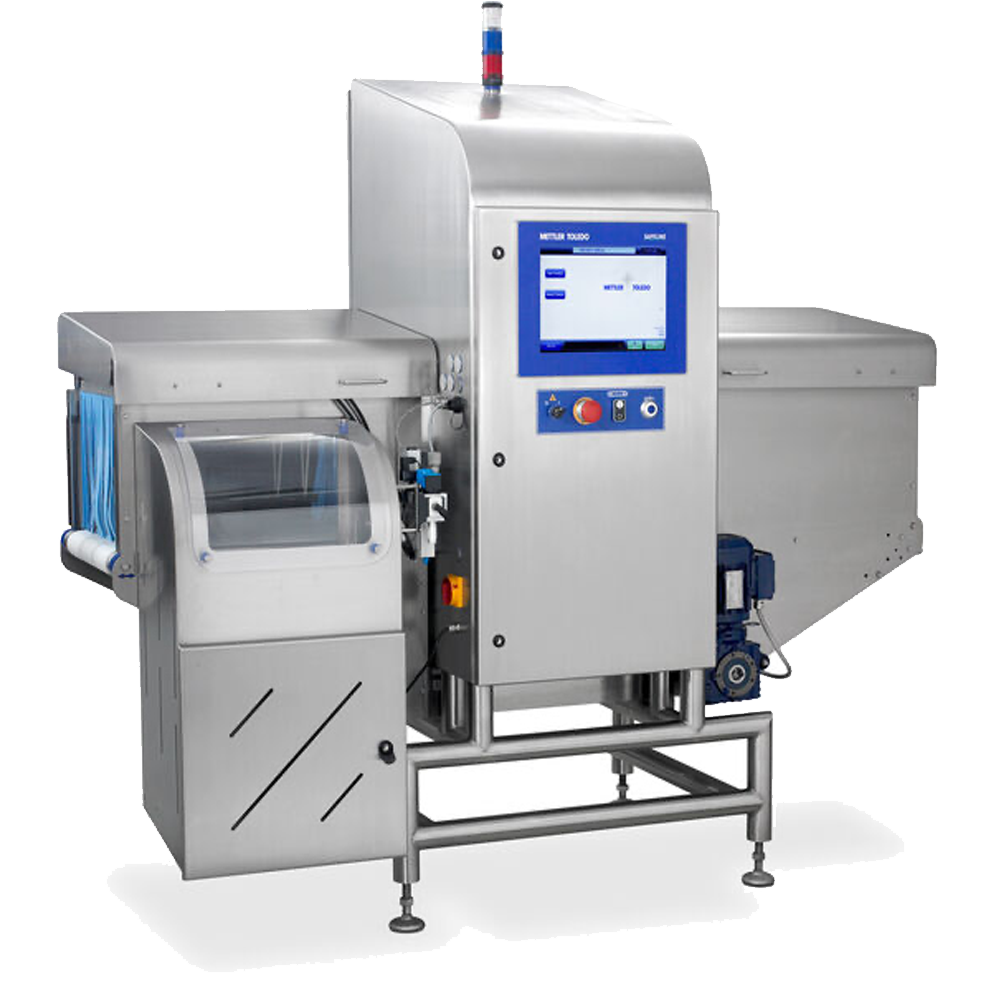

X36 DXD+
X36 DXD+
Mettler Toledo

Overview

The X36 with an integrated DXD+ dual energy detector, offers unrivalled contamination detection of hard-to-find contaminants such as calcified bone, rubber and glass in textured and overlapping product applications.

Exceed Detection Requirements
DXD+ detector technology can surpass market expectations for contamination detection and meet the most demanding customer specifications.

Improved Inspection with AMD
Powered by our AMD software with the latest advanced material discrimination algorithms, the DXD+ offers exemplary contamination detection.

User-friendly Features
Automated product set-up with user-friendly ContamPlus™ software to improve uptime, reduce cost and enhance detection sensitivity.

Next Level Innovation
The DXD+ is at the forefront of R&D in product inspection technologies. This innovative detector will help protect brands and promote product safety.

Advanced Quality Verification Checks
The X36 with DXD+ is a highly configurable solution, with the highest levels of integrity checks across single or multiple product lanes. Inspect products at throughputs that meet the demands of production for remarkable brand protection and compliance.

Five Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for five years when purchased with a Standard or Comprehensive Care Package.

ProdX - The Next Level in Product Safety
ProdX software saves you time and money by automating essential quality control processes. The safely stored data can help you grow your business in supporting regulatory compliance and brand protection by proving due diligence.

Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offer allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.

Features & Benefits


IP Rating IP55
IP65
Compatible SoftwareProdX
ConnectivityEthernet
OPC UA
USB
Inspection SolutionX-ray Inspection
Max Product Width480 mm
HMI15.6" Touchscreen
Packaging Type Cardboard
Cartons
Metalized Film
Plastic
Trays
Cooling MethodAir Conditioner & Radiator Pump
Product FlowConveyor
X-ray Beams Single vertical beam
X-ray Generator420 W, up to 84 kV, up to 5.0 mA Beryllium Tube
Inspection Application Clip Detection
Completeness Check
Contamination Detection
Fill level Check
Integrity Check
Mass Control
Product-Trapped in Seal
Product Characteristic Medium-Large Packages
Industry Chemical
Food & Beverage
Pharma & Biotech
Max Product Height300 mm
Industry SegmentBakery and Confectionery
Beer, Wine and Other Alcoholic Beverages
Bulk Chemicals
Cosmetics
Dairy
Fine and specialty chemicals
Food Additives
Meat & Poultry & Seafood
Nutraceuticals
Oils and Fats
Pet Food and Animal Feed
Pharma
Ready Meals
Snack Foods
Sugar Starch and Yeast
Water and other Non-Alcoholic Beverages
X-ray DetectorDual Energy, DXD+ Technology
Max Product Weight25 kg
X-ray Emissions< 1uSv/hr
Max Line Speed40 m/min
Max Throughput500 ppm
Diode Size0.4 mm
