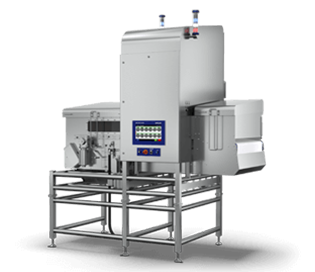

X39
Overview
The X39 X-ray System is specifically designed for the inspection of frozen-formed products, ensuring your products are free from contaminants and product defects.
Unsurpassed Detection of Contaminants
Simultaneously detects and rejects contaminants such as calcified bone, glass and metal within frozen formed products including burger patties.
Designed for Harsh Environments
IP69 design ensures the demands of harsh environments are met, using 316 stainless steel for all key product contact areas including the reject flap.
Minimise Product Waste
The X39 can inspect products at up to 57m per minute whilst a dual reject system ensures rejection of non-conforming product for re-work.
Features & Benefits
| Casing Material | 304 stainless steel (316 on key contact areas) |
| Conveyor Speed | 10- 57 m/min (dependent on product dimensions) |
| Lane Configurations | Up to 7 unguided lanes |
| Throughput Rate | Up to 1,800 ppm |
| Cooling Method | Heat exchanger and radiator pump |
| Screen Display | 15.6” LED display (16:9 ratio) |
| Operating Temperature | 5 - 40°C |
| Power Supply | 208 - 240 Vac, 1 phase, 50-60Hz, 10A |
| Pneumatic Supply | 6 Bar(g) air supply required for reject system |
| X-ray Detector | 800mm |
| X-ray Generator | 420W, 84kV, 5.0mA Beryllium tube |
| X-ray Beams | Single beam |
| X-ray Emissions | < 1uSv/hr |
| Reject Type | Airblast reject with failsafe reject flap |
| Inspection Conveyor | FDA and EU food use approved TPU conveyor belt |
| Reject Conveyor | FDA and EU food use approved PP modular belt |
| Laser Inspection | 3D camera with inbuilt laser |
