X36 Series

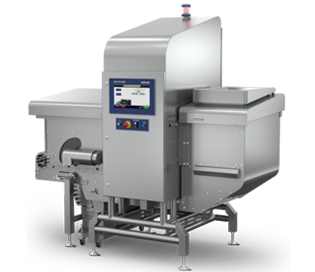

X36 Bulk Flow
Mettler Toledo

Overview

Designed for loose bulk-flow food products, the X36 Series Bulk x-ray system offers outstanding contaminant detection before further value is added to the product, saving costs.

Minimising Product Waste
A choice of reject devices, from multiple scoop to air blast nozzles, offer a range of solutions depending on the application needs.

Reduced Running Costs
The advanced detector technology enables lower power x-ray generation offering reduced power consumption and running costs.

Hygienic Design
Class-leading hygienic design following GMP, NFS and EHEDG principles with IP69 as standard and an innovative design enabling full cleaning access.

Features & Benefits

Casing Material Stainless Steel
Ingress ProtectionFull IP69 high pressure wash-down protection
Conveyor Speed Typical line speeds 20-60 m/min
Infeed Options Flexible infeed: Hopper or end-fed option
Throughput RateTypical throughput rates of up to 14,000 kg/hour
Maximum Product Layer 550mm (W) x 30mm (H), dependent on product
Screen Display15.6” TFT (16:9 aspect ratio)
Operating Temperature5 - 40°C
Pneumatic SupplyMinimum 6 Bar(g) clean air supply required
Belt TrackingAutomatic pneumatic tracking and tensioning
X-ray Detector0.8mm diodes, 600mm width
X-ray Generator100W, 84kV, 1.2mA Beryllium
X-ray Emissions< 1uSv/hr
Reject TypeSix lane scoops or seven lane air-blast options
System ConveyorFDA and EU food use approved TPU conveyor belt
