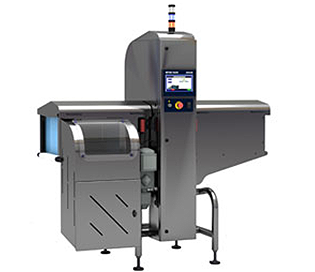

X33 Series
Overview
The X33 Series x-ray system offers outstanding contamination detection for packaged product applications, ensuring food safety, whilst the operating power is reduced up to 45%.
Reduced Power Consumption
Utilising high sensitivity detector technology and a 20W x-ray generator, using five times less x-ray power than other x-ray systems.
Applications and Throughputs
Ideally suited for the inspection of small and medium sized packaged products, including products packaged in foil or metallised film.
Hygienic Design
Class-leading hygienic design following GMP, NFS and EHEDG principles with IP65 as standard and the option to upgrade to IP69.
Specifications - X33 Series
| Conveyor Speed | 10 - 60 m/min (dependent on product dimensions) |
| Lane Configurations | Single lane |
| Throughput Rate | Up to 300 ppm |
| Cooling Method | Passive fan assisted cooling |
| Screen Display | 10.1” LED display (16:9 aspect ratio) |
| Operating Temperature | 5 °C - 40 °C |
| Power Supply | 208 - 240 Vac, 1 phase, 50-60 Hz, 6 A max; 100 - 120 Vac, 1 phase, 50-60 Hz, 10 A max |
| Pneumatic Supply | 6 Bar(g) air supply required for reject system |
| X-ray Detector | 300mm or 400mm - 0.8mm diode size |
| X-ray Generator | 20W, 84kV, 0.25mA Glass or optional Beryllium Tube |
| X-ray Beams | Single beam |
| X-ray Emissions | < 1uSv/hr |
| Reject Type | Pusher and Airblast |
| Material Number(s) | 30468718 |
