Overview

Inspection of powders/granules

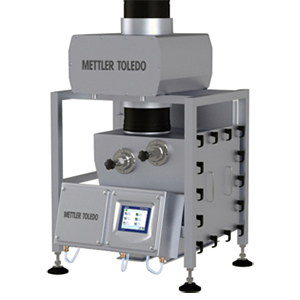

Gravity fall metal detection systems controlled from a full-colour touchscreen operator interface, for the inspection of powders and granular products.

Maximum Sensitivity and Performance

Multiple ultra high tuned frequencies with enhanced noise and vibration immunity deliver exceptional sensitivity to consistently detect more metal.

Simple to Use and Robust Detector Design

Proven reliability. Intuitive, easy to use icon driven touchscreen. IP65 rated with a choice of detector finishes.

Maximum Uptime

Condition monitoring and Reduced Test mode ensure maximum performance over time and allow a reduction in scheduled performance monitoring tests.

Features & Benefits

Feature	Benefit
Brand Protection	High sensitivity to Fe, Non-Fe & S/S metals
Compliance	Supports FSSC22000, BRC, IFS, SQF and FSMA
Increased Productivity	World class reliability and OEE reporting
Cost Reduction	Stable operation with minimal product waste
Easy to Use	Single setting operation with Product Clustering
Future Proof	Modular and upgradeable design
HMI	145 mm (5.7 inch) colour QVGA touchscreen display
Optional ATEX/IECEx Compliance	For use in explosive dust environments
Operating Mode	Choice of Dual Frequency options
User Access Log and Detection Log	Date and time stamped; data stored and displayed
Product Memory Facility	Stores up to 100 product names with rapid recall
Histogram and Vector Diagrams	Track product signal changes; monitor performance
Individual User Accounts	32 user accounts, selectable by job function
Product Display Data	Product Name display includes batch/code detail
Multiple Languages	33 selectable user account-specific languages
Automatic Performance Monitoring Alarm	Notifies when scheduled test is due/overdue
Performance Verification Alarm	Automatic reminder when annual verification is due
Documentation	Installation/Operation instructions and Ipac
Test Pieces Included	Ferrous, Non-Ferrous and Stainless Steel (options)
Temperature Range - Operating / Storage	-10 to +40 degrees C / -10 to +50 degrees C
