Overview

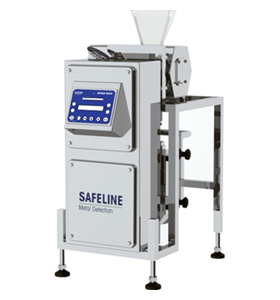

Designed and built to comply with FDA, GMP standards and to satisfy the demands of the industry, Pharma GF pharmaceutical metal detectors are designed for the inspection of gravity fall fine powders. Capable of detecting and rejecting all metal contaminants in flight, Pharma GF is a fully integrated product inspection system.

Pharma GF pharmaceutical inspection systems provide unrivalled metal detection sensitivity to all metal contaminants including non-magnetic stainless steels and difficult to find, minute sieve wire contaminants. This exceptional performance is further enhanced by robust construction for maximum on-line stability.

An integrated advanced failsafe reject device ensures any contaminated product is rapidly removed from the product flow.

Simple operation is provided through industry standard SAFELINE Signature software accessed via a menu driven membrane key panel.

Features & Benefits

Feature	Benefit
Unrivalled sensitivity and stability	The maximum capacity to detect all metal contaminants combined with stable on-line performance.
Designed for harsh environments	Full stainless steel construction and sealing standards up to IP69K make HDS pipeline detectors suitable for the harshest meat processing environments.
Performance validation software	Built-in performance validation software indicates when scheduled testing is due and assists QA staff by guiding them through step by step test routines.
Easy to use	The intuitive, robust Signature membrane style menu driven interface provides easy set up and minimized downtime at product changeovers.
Compatible with other process equipment	Designed for close integration with all leading vacuum filler and other sausage processing equipment.
Compact, mobile design for easy line integration	Use of unique ZMFZ technology and a robust mobile stand design enables overall system length to be minimized reducing the pipe length and helping to reduce product creaming.
Connectivity options	Can be provided with an integral Ethernet adapter enabling connection to all external data collection devices and factory management systems.
