SmartChek / SmartChek Plus
Overview

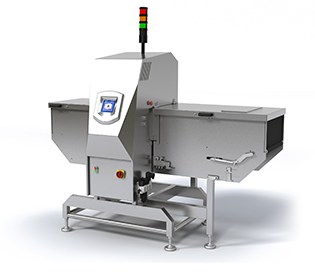

The SmartChek Plus is a fast, reliable and economical way to introduce x-ray inspection into food production lines. It delivers superior sensitivity over traditional detection methods and combines contaminant detection with gross mass measurement, for guaranteed product safety and quality.
Brand protection made easier
The SmartChek Plus x-ray system is built on the benefits of the highly successful standard SmartChek. On a single user interface the SmartChek Plus offers unsurpassed detection of foreign bodies in small and medium sized retail packs and can simultaneously perform gross mass measurement for calculated portion control with servo feedback to the filling machine; reducing giveaway and avoiding any non-compliance.
Connectivity
The SmartChek Plus x-ray system offers a flexible approach to product inspection, with communication via USB or Ethernet, directly or via the OMAC-compliant OPC server.
Features & Benefits
| Features | Description | Benefits |
|---|---|---|
| Contamination detection | Detection of contaminants such as glass, metal, stone and high-density plastic even for products packaged in foil or metalized film | Ensuring product safety |
| Gross mass measurement | Gross mass measurement with feedback to the filling machine | Reducing product waste |
| High throughputs | Inspection widths of 300, 400 and 600mm are available with line speeds of up to 500 packs per minute and a choice of different auto reject systems | Improved productivity |
| Operating conditions | Operating at a low energy level, the system is safe and reliable | Reducing the cost of ownership |
| Hygienic design | Quick release belt and fast curtain removal. IP65 as standard and IP69K as an option for harsh wash-down environments | Easy cleaning and maintenance and optimum protection against pathogenic micro-organism growth |
