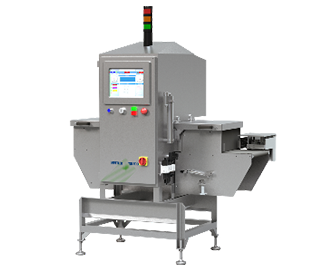

PowerChek / PowerChek Plus
Overview
Delivers detection and elimination of foreign bodies in bulk products regardless of shape or location within the product.
Increased Productivity
Optimize inspection capacity by adjusting product height and select the right rejects and in-feeds for a solution customized to your application.
Optimum Product Handling Minimizes Waste
Any contaminants are quickly eliminated through a single, multi-flap or multi-airblast rejection system.
Inspection Width Available
PowerChek is available in 300mm width only; PowerChek Plus is available in 400 / 500 / 600 and 800mm widths.
PowerChek Plus Specification Table
| Inspection Software | Windows XP with definable inspection algorithms |
| Connectivity/Data | USB, OMAC compliant Ethernet IP or OPC Data |
| Display | Full color TFT 15-inch touch-screen |
| Cabinet/Conveyor | 304 Stainless Steel |
| Cooling Method | Heat exchanger or air conditioner |
| Ambient Humidity | 30-85% |
| Ambient Temperature | 32 to 104°F |
| Scan Width | 10 to 32 inches (Plus 10 to 40 inches) |
| Belt Speed | VFD controlled maximum 50 – 400 fpm |
| Input Power | 110 or 230VAC, 50 / 60Hz, 16 Amp |
| Belt Width | 11 to 33 inches (Plus 11 to 41 inches) |
| Environmental Protection | Standard: NEMA 4/IP65; Optional:NEMA PW12/IP69K |
| Cleaning | Low pressure spray; Optional high pressure spray |
| X-ray Generator | 100W(50KV, 70KV, 84KV) or 360W(80KV or 120KV) |
| Detector | 0.4mm, 0.8mm, 1.5mm pitch |
| X-ray Emissions | < 5 μSv per hour |
| X-ray Protection | Line of sight, curtains, shielding |
| Certifications | CE standard; UL61010-10, CUL, 3A, AMI optional |
| Controls | Allen Bradley |
