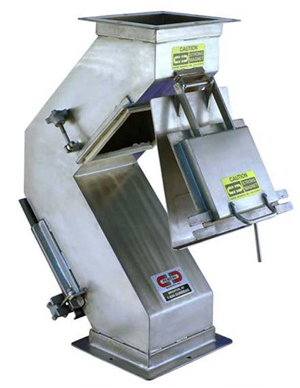

Hump Magnets generally consist of two Plate Magnets mounted in an offset housing and are installed in vertical spouts. As product enters the housing it impacts directly on the face of the first Plate Magnet, travels through the offset angle of the housing and impacts directly on the face of the second Plate Magnet. This provides excellent separation results for high volume, poor flowing, or abrasive materials.

The drawback to the Hump Magnets is they typically require a long straight area for installation. The two Plate Magnets are hinged, latched, and gasketed to the housing for access.

Construction

• 100% stainless steel enclosed construction


• Highest grade of magnet material includin Neodymium-Iron-Boron (rare earth), Samarium-Cobalt (rare earth), Ceramic and Alnico


• Dual magnets for added protection


• Twin Trap face design for added protection


• Heavy duty stainless steel angle inlet and outlet flanges


• Heavy duty latches, hinges, and handle for easy access


• FDA approved white silicone sponge food grade gasket material

Options:

• 316L stainless steel and other alloy construction


• EZ CLEAN™ option with hinged stripper face to simplify cleaning


• POW-R CLEAN™ option to pneumatically operate hinged stripper face for automated self-cleaning


• Round inlet and outlet openings


• Sanitary construction


• Single Trap, Pole Face, or Suspended Face designs


• Various magnetic strengths to choose from
