Head Pulley Magnets Puritan Magnetics Inc.

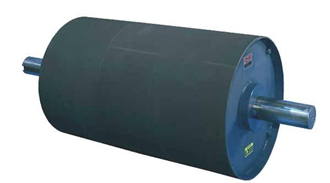

Head Pulley Magnets

Head Pulley Magnets provide continuous self cleaning on products conveyed by belt. As product is conveyed along the belt it reaches the head pulley and enters the magnetic field where metal contaminants are attracted and held tightly to the belt surface. As the belt is conveyed around the magnetic pulley, metal contaminants are held in place until they pass through the magnetic field where they are safely discarded separate from the clean product.

A diverter is typically installed below the pulley to direct the metal contaminants away from the cleaned product.



Construction:

  • 304 stainless steel face

  • Bored and keyed hubs

  • Permanent ceramic magnet material

  • All welded rugged construction

  • Keyed shafts

  • Axial or radial pole magnetic circuit

Options:

  • Available with or without shaft

  • Several hub styles

  • Lagged face

  • Crowned face

  • Taper lock hubs

  • Stainless steel shafts

  • High energy rare earth magnet material

  • Custom sizes available

  • Polarity options

  • Extra duty magnetic strength
